| Place of Origin: | China |
| Brand Name: | yuetong |
| Certification: | ISO9001 |
| Model Number: | M8-M10 |
| Minimum Order Quantity: | 1Ton |
|---|---|
| Price: | US$0.01-US$0.3Piece |
| Packaging Details: | The small box is in big box on the pallets |
| Delivery Time: | 30-45 day |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10Tons per week |
| Material: | Steel | Diameter: | 3/16in, 1/4in, 5/16IN, 12mm, 48mm-202mm |
|---|---|---|---|
| Size: | M8-M10 | Packing: | Small Box+Carton+Pallet |
| Grade: | 4.8 | MOQ: | 1Ton |
| Highlight: | White Zinc Metal Anchor Bolts,Carbon Steel Metal Anchor Bolts,Factory Metal Anchor Bolts |
||

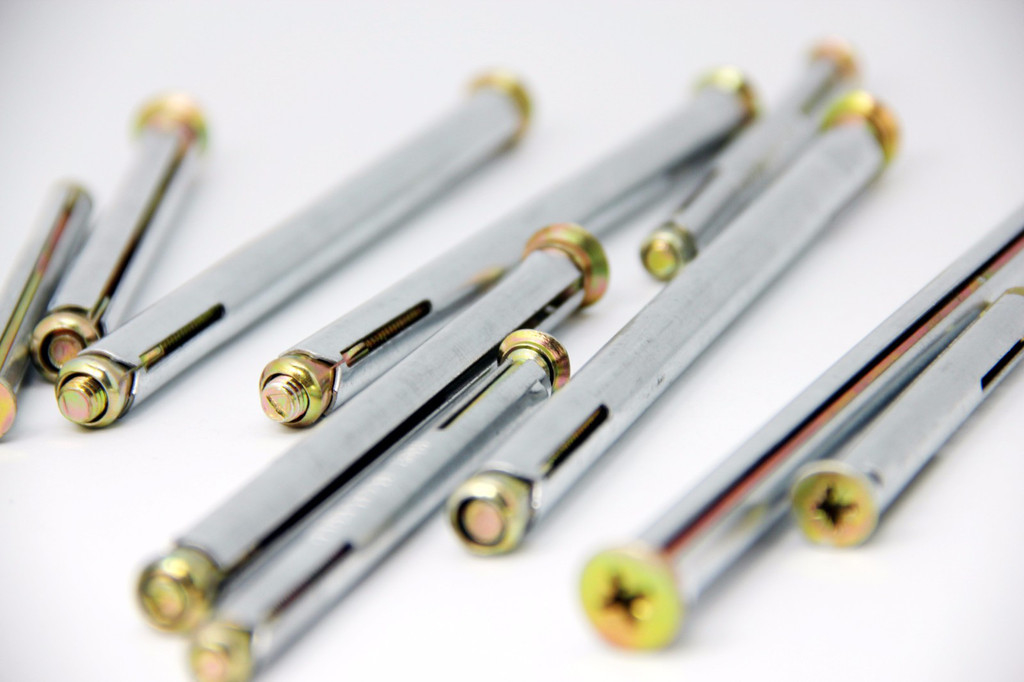

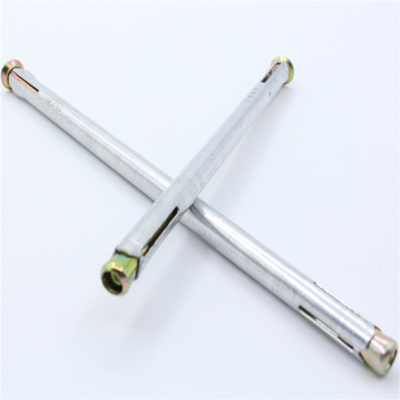

Hollow metal tube expansion screws (also known as hollow window geckos or hollow wall frame anchor bolts) are ultra long expansion screws used for deep hole and ultra thick anchoring. They are specifically used for fixing plastic steel doors and windows, aluminum alloy doors and windows, steel and wood structures, joists, and building decorations (GRC, such as Roman columns and window sleeves); It is also the best choice for fixing the floor joist keel, and is particularly suitable for fixing other ultra deep and ultra thick components. 2, Material and craftsmanship guarantee:

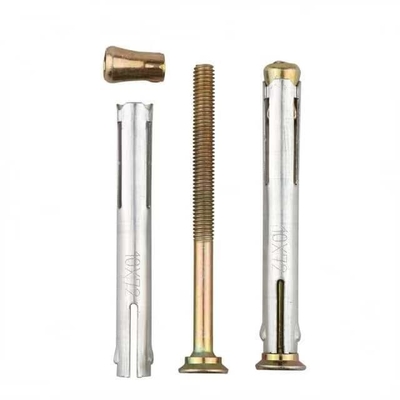

Screw: Made of ordinary carbon wire using German standard (DIN) thin rod process, with surface galvanized and passivated treatment.
Tube body: hot-dip galvanized steel coil (thickness δ=0.75-0.05) is longitudinally cut and continuously punched into shape.
Nut: Formed in one go by a multi-station cold heading machine, with a surface coated with colored zinc.
3, Tensile testing and allowable tensile strength:
After installing this product on C30 concrete blocks, the failure limit value should be greater than 4000N when measured using a tensile testing machine.
Permissible tensile force: It is recommended that the allowable tensile load for a single vertical design be less than 2500N.
|
item
|
value
|
|
Finish
|
Bright(Uncoated)
|
|
System of Measurement
|
INCH
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Model Number
|
M8*52
|
|
Material
|
Steel
|
|
Capacity
|
Strong
|
|
Standard
|
GB
|
|
Material
|
Steel
|
|
Diameter
|
48mm-114mm
|
|
Packing
|
Small Box+Carton+Pallet
|
|
Size
|
M8-M10
|
|
MOQ
|
1000PCS
|
1. Good after-dales service, Any samall problems will be solved at the prompt time.
2. Many years of export experiences.
3. Specification list is avaliable upon your request.
4. Welcome to send requry, we will reply soon.
5. Prompt shipment with professional documents.
6. Custom packing with photo bafore shipment.
7. High quality and competitive price.
HEBEI YUETONG FASTENERS MANUFACTURING CO.,LTD is located in China's largest fasteners production base---Yongnian fasteners centre.
Our factory was founded in 1991.We have several sets of advanced equipments, adopt advanced modern management and use high quality steel to produce high quality products. The products sold throughout the domestic and exported to Southeast Asia and Europe and other countries and regions. Our products win good reputation with domestic and foreign customers.
Our factory mainly produces: all kinds of flat washers, spring washers, expansion screws, hex nuts, flange nuts, hex bolts, flange bolts, sleeve anchor, fundation bolts, and thread robs with DIN, BSW, ANIS,MS.And we also provide the OEM, Meanwhile, we are manufacturing factory, so we can give you the best quality and the good price.
1. Packing Details:25kg/carton or bag on the pallet or as customer's requirement
2. Delivery Dtetails: 25 days after order.
Q: Are you trading company or manufacturer?
A: We are manufacturer and a trading company, which produces a portion by itself and a cooperative OEM factory produces a portion.
Q: How long is your delivery time?
A: Denerally it is 5-10days if the goods are in stock, or it is 15-25days if the goods need be produced, it is according to quantity you want.
Q: What is your terms of payment?
A: Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shipment.
